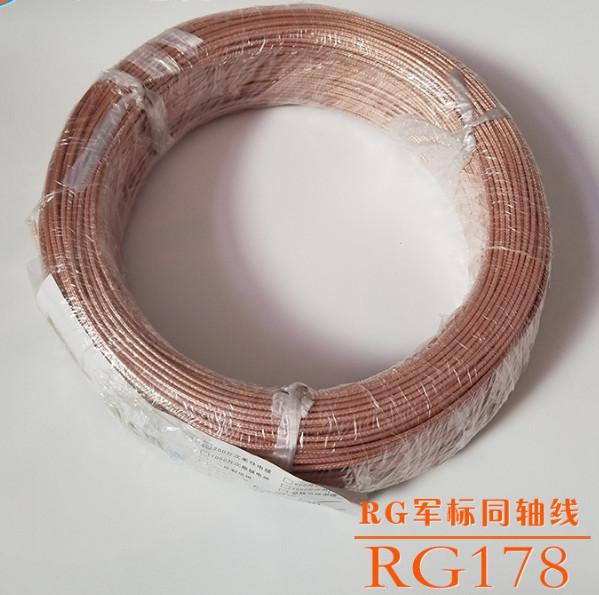

    Pigtail Cable RG178 coaxial cable 50 ohm military standard for WIFI Wireless LOW LOSS

    Ask Lasest Price
    Brand Name : OEM
    Model Number : RG178
    Certification : ISO9001
    Payment Terms : T/T
    Supply Ability : 1000000m/month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    Pigtail Cable RG178 coaxial cable 50 ohm military standard for WIFI Wireless LOW LOSS

    RG316 coaxial cable 50 ohm US military standard High Temperature RG316 Coaxial Cable wire


    For more product informations, please contact our sales team to get details.

    RG series coaxial cable

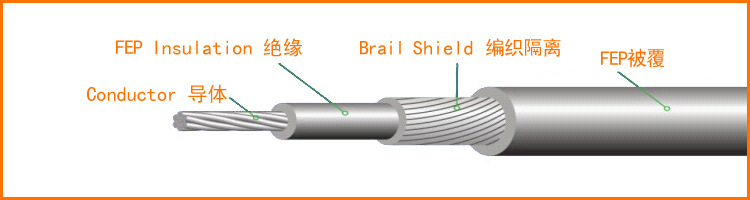

    Construction SpecificationRG316 coaxial cable
    MaterialDiameter(mm)
    Inner conductorSilver plated copper clad steel7X0.1
    DielectricPTFE0.9
    Out conductorSilver plated copper braid1.3
    JacketFEP1.8

    RG178

    RG178 coaxial cable


    Series No.ItemRG178RG179RG316
    1Material of inner conductorSilver plated copper wireSilver plated copper wireSilver plated copper wire
    2structure of inner conductor7/0.107/0.107/0.17
    3Material of insulatorFEPFEPFEP
    4OD of insulator0.86mm1.6mm1.5mm
    5Material of braidSilver plated copper wireSilver plated copper wireSilver plated copper wire
    6Density of braid≥90%≥90%≥90%
    7JacketFEPFEPFEP
    8OD of cable1.8mm2.5mm2.5mm
    9Impedance50Ω75Ω50Ω
    Standard : MIL-C-17

    Application

    CCTV,Telecommunication
    InstrumentationCCTV
    Radio Frequencysatellite receiver
    TVsatellite
    Wifi routeMilitary purpose
    CameraHigh precision medical equipment
    Smart robotAero

    RG178 cable assembly N female to IPEX

    Assembly line


    Processing Equipments

    Testing Equipments


    Packaging

    Products categories :

    1. RF adapters (male to male, male to female, female to female)

    2. RF connectors : Mini DIN 4.3-10, 4.1-9.5, DIN 7/16, N type, TNC, QMA, 1.0/2.3, SMA, SMB, SMZ, MCX, MMCX etc. for all kinds of RG401, RG402, RG405, RG174, RG178, RG179, RG316, RG142, RG58, RG59, RG223, RG213, RG214, LMR100, LMR195, LMR200, LMR240, LMR300, LMR400, LMR600, 3D-FB, 5D-FB, 7D-FB, 1/2", 1/4", 3/8", 7/8", 1-5/8" feeder cable, corrugated foam and superflex types.

    3. Coaxial connectors : F Type, PAL(IEC), BNC, RCA, ( compression, crimp, PCB mount )

    4. RF Attenuators

    5. Lightening Arrestors

    6. RF Cable Assebmlies (shrink tube and feeder cover-hot polyamide moulding )

    7. Center Pin ( inner conductor )

    8. Feeder Cables (Brand: Hansheng, Hengxing, Kingsignal etc, Type: 1/2", 1/2"SF, 7/8", RG59, RG6, RG174, LMR400 etc.)

    9. Antennas (ZTE, MOBI etc.)

    10. IBS products (splitter,coupler, combiner, 3M tape, cable clamp, Ground copper bar, Grounding kits, electric cabinet, Heat Shrink Sleeve etc.)
