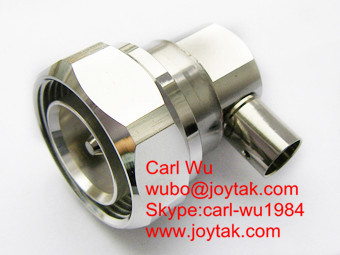

DIN 7/16 female jack for 1/2" coaxial cable

Features & Benefits
• Low IMD and low VSWR provides improved system performance.
• Self-flaring design ensures ease of installation with standard hand tool.
• Pre-assembled gasket protects against dust (P68) and water (IP68) per IEC 169.
• Limited internal junctions reduce sources of IMD.
• Silver-plated contacts and silver or white bronze-plated bodies deliver a high conductivity and corrosion resistance for a long, trouble-free life.
• Easy-Hex coupling nut allows tightening by hand or with a standard wrench for ease of mating.

Applications
• Antennas • Base Stations • Broadcast
• Cable Assembly • Components (Control) • Lightning Protection
• Satcom

• 7/16 Corrugated Cable Specifications
• Electrical
• Impedance 50 Ω
• Frequency Range DC - 7.5 GHz
• Return Loss
• 30 dB @ DC - 1.0 GHz (3 ft. assembly)
• 28 dB @ 1.0 - 2.0 GHz
• 21 dB @ 2.0 - 3.0 GHz
• RF-Leakage 125 dB minimum
• Voltage Rating (at sea level) ≥ 813 Vrms (depending on cable)
• Average (Peak) Power Maximums 3.0 kW (13.2 kW)
• Contact Resistance
• center contact: ≤ 0.4 mΩ
• outer contact: ≤ 1.5 mΩ
• Insulation Resistance 5,000 MΩ minimum
• Insertion Loss Maximum 0.05 dB @ 1 GHz
• Dielectric Withstanding Voltage 2,300 Vrms (at sea level)
• 3rd order Inter-Modulation Distortion
• -120 dBm/ - 165 dBc typical (+43 dBm carriers)
• Mechanical
• Mating M29 x 1.5 threaded coupling nut
• Attachment Method (inner/outer) captivated/compression
• Coupling Torque, min./max. 15/20 lb-ft (20/28 N-m)
• Coupling Nut Retention force 225 lbs (1000N) min.
• Assembly Torque (body/clamp nut) positive stop, 18/20 lb-ft (25/30 N-m)
• Durability (matings) 500 cycles min. (DIN 47275, 2/10.82 section 2.10)
• Environmental
• Temperature Range -65°C to +165°C
• Thermal Shock IEC 68, part 2-14, test Na
• Immersion IEC 529, IP68
• Corrosion IEC 68, part 2-1, test Ka
• Vibration IEC 68, part 2-6
• Mechanical Shock IEC 68, part 2-27
• Material
• Male Contact Brass
• Female Contact Beryllium copper
• Other Metal Parts Brass per ASTM-B16, silver or white bronze plated
• Insulator PTFE per ASTM-D1457
• Gasket Silicone rubber (weatherproof), ZZ-R-75
• Protective Coating Clear chromate (on silver plating)
• Note: These characteristics are typical but may not apply to all connectors.

• 7/16 Semi-Rigid & RG Cable Specifications
• Electrical
• Impedance 50 Ω
• Frequency Range DC - 7.5 GHz
• VSWR 1.3 max. @ DC - 7 GHz
• RF-leakage 125 dB minimum
• Voltage Rating (at sea level) ≥2,700 Vrms (depending on cable)
• Contact Resistance
• center contact: ≤ 0.4 mΩ
• outer contact: ≤ 1.5 mΩ
• Insulation Resistance 5,000 MΩ minimum
• Dielectric Withstanding Voltage 4,000 Vrms (at sea level)
• 3rd order Inter-Modulation Distortion -120 dBm / -165 dBc typical (+43 dBm carriers)
• Mechanical
• Mating M29 x 1.5 threaded coupling nut
• Attachment Method (inner/outer) captivated or solder/solder
• Center Conductor Cable Affixment Socket or solder
• Coupling Torque, min./max. 15/20 lb-ft (20/28 N-m)
• Coupling Nut Retention Force 225 lbs (1000N) min.
• Durability (matings) 500 cycles min. (DIN 47275, 2/10.82 section 2.10)
• Environmental
• Temperature Range -65°C to +165°C
• Thermal Shock IEC 68, part 2-14, test Na
• Immersion IEC 529, IP68
• Corrosion IEC 68, part 2-1, test Ka
• Vibration IEC 68, part 2-6
• Mechanical Shock IEC 68, part 2-27
• Material
• Body and Outer Contacts Brass per ASTM-B16, silver or white bronze plated
• Male Contact Brass
• Female Contact Beryllium copper
• Other Metal Parts Brass per ASTM-B16, silver or white bronze plated
• Insulator PTFE per ASTM-D1457
• Gasket Silicone rubber (weatherproof), ZZ-R-75
• Protective Coating Clear chromate (on silver plating)
• Note: These characteristics are typical but may not apply to all connectors.
